You are here: Home > Products >2-PORT OPTICAL RECIEVER

MODEL:8912C-2G
One-way optical reciever

MODEL:8912-2G
Two-way optical reciever

Features:

※ Splitter or tap output optional.

※ Import optical detection devices with excellent performance.

※ Fine aluminum die cast housing, with the capability of waterproof, radiation proof and anti-jamming.

※ Hidden slot structures are used for balance and attenuation plug-ins, ease of construction.

※ Input optical power indicator,convienent to use and maintain.

※ High efficient switch power, small temperature rise,wide accomodatior of voltage.

Table 1

ITEM	UNIT	Performance
		8912C-2G□□-□-□			8912-2G□□-□-□
Bandwidth	MHz	47～750/860			47～750/860
Optical wavelength	nm	1290～1580			1290～1580
Optical Return Loss	dB	≥45			≥45
Input level	dBm	-5～+2			-5～+2
Optical Link response*	dB	±0.75			±0.75
CNR*	dB	See Table 2			See Table 2
C/CTB*	dB	≥67		≥65	≥67		≥65
C/CSO*	dB	≥63		≥61	≥63		≥61
RF output level*	dBμV	≥96	≥100	≥108	≥96	≥100	≥100
Return Loss	dB	≥16			≥16
Power supply	V	～220V or ～60V			～220V or ～60V
Operating Temp.	℃	-20～60			-20～60
Power consumption	W	≤45			≤45
Connectors	Optical	FC/APC or SC/APC			FC/APC or SC/APC
	RF	5/8″			5/8″
Weight	Kg	3			3.1
Dimensions	mm	290×225×120			290×225×120
Remark	* The 10km fiber with optical attenuator connect the 8900 cransmitter and the receiver;Input optical power of the receiver: -1dBm

Table 2

Input Optical Power(dBm)	-4	-3	-2	-1	0	+1
C/N(dB)	49	50	51	52	53	54

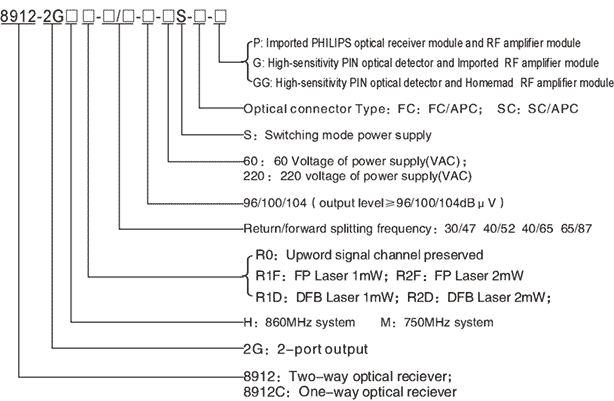

8912-GK OPTICAL NODE NAMING :
